VBA > Data > Make Cross-Reference Records

Make cross-reference records by separating values from a field with multiple values.

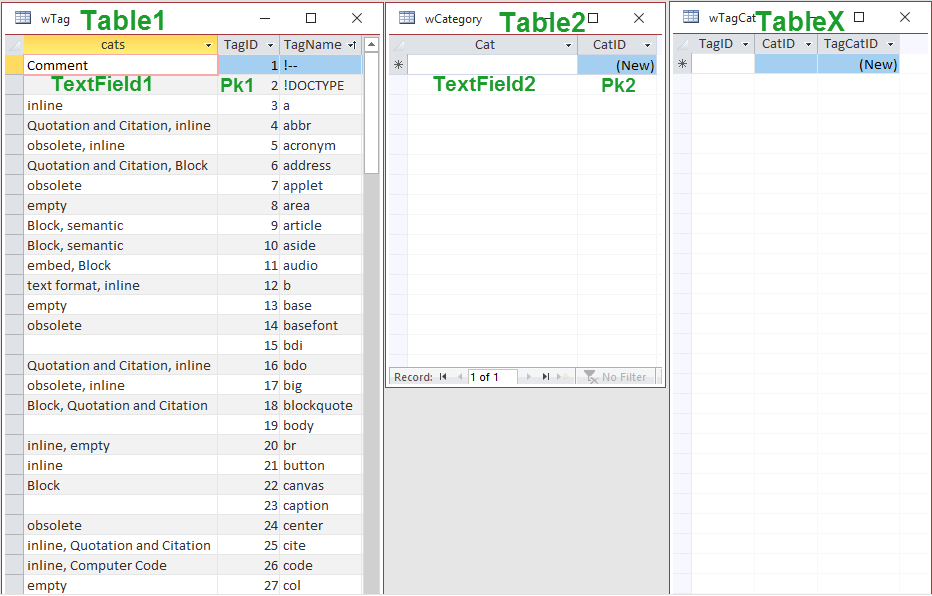

Table1 has values that need to be parsed and stored in Table2. Cross-reference records need to be created in TableX.

video tutorial

YouTube

video: Make Records in an Access Cross-Reference Table with VBA (9:00)
(and a little about HTML)

Code

'  module: mod_MakeXRefRecords
'*************** Code Start *****************************************************
' Purpose  : make cross-reference records
' Author   : crystal (strive4peace)
' License  : below code
' Code List: www.MsAccessGurus.com/code.htm
'          : http://msaccessgurus.com/VBA/Code/Data_CrossRef.htm
'
'-------------------------------------------------------------------------------
'                              launch_MakeXRefRecords
'-------------------------------------------------------------------------------
Sub launch_MakeXRefRecords()
'200920 strive4peace, 21
   '
   'CLICK HERE
   'Press F5 to Run!
   '
   Dim sTable1 As String _
      ,sTable2 As String _
      ,sTableX As String _
      ,sTextField1 As String _
      ,sTextField2 As String _
      ,sPk1 As String _
      ,sPk2 As String
   '--------------------------- customize
   sTable1 =  "Table with data to separate"
   sTable2 =  "Table to create records in"
   sTableX =  "Cross-Reference table"
   sTextField1 =  "field to separate"
   sTextField2 =  "field for single values"
   sPk1 =  "primary key fieldname of Table1"
   sPk2 =  "primary key fieldname of Table2"
   '---------------------------

   Call MakeXRefRecords( _
      sTable1,sTable2,sTableX _
      ,sTextField1,sTextField2 _
      ,sPk1,sPk2 _
      )
End Sub

'-------------------------------------------------------------------------------
'                              MakeXRefRecords
'-------------------------------------------------------------------------------
Sub MakeXRefRecords( _
   psTable1 As String _
   ,psTable2 As String _
   ,psTableX As String _
   ,psTextField1 As String _
   ,psTextField2 As String _
   ,psPk1 As String _
   ,psPk2 As String _
   ,Optional psDeli As String =  "," _
   )
'200920 strive4peace, 21
' separate a list of values in Table1.TextField1
' add records for Table2.TextField2 as needed
' Create cross-reference record in TableX with Pk1 and Pk2
' Assume PK/FK fieldnames are the same.

   'CALLs
   '  RunTheSQL

   On Error GoTo Proc_Err

   'dimension scalar variables
   Dim sValue As String _
      ,sWhere As String _
      ,sSQL As String _
      ,sMsg As String _
      ,i As Integer _
      ,nPk1 As Long _
      ,nPk2 As Long _
      ,nCount1 As Long _
      ,nCount2 As Long _
      ,nCountX As Long

   Dim asItems() As String

   'dimension object variables
   Dim db As DAO.Database _
      ,rs1 As DAO.Recordset _
      ,rs2 As DAO.Recordset

   'set db and open recordsets
   Set db = CurrentDb
   Set rs1 = db.OpenRecordset(psTable1,dbOpenDynaset)
   Set rs2 = db.OpenRecordset(psTable2,dbOpenDynaset)

   'initialize counters
   nCount1 = 0  'records separated in table1
   nCount2 = 0  'records added to table2
   nCountX = 0  'records added to x-ref table

   With rs2
      Do While Not rs1.EOF
         nPk1 = -99
         sValue = Trim(Nz(rs1.Fields(psTextField1), ""))

         If sValue <>  "" Then
            nCount1 = nCount1 + 1
            'get primary key from table1
            nPk1 = rs1.Fields(psPk1)
            asItems = Split(sValue,psDeli)

            'loop through items
            For i = LBound(asItems) To UBound(asItems)
               nPk2 = -99
               sValue = Trim(asItems(i))

               If sValue <>  "" Then
                  'see if value is already in table2
                  sWhere =  "[" & psTextField2 &  "] = """ _
                     & sValue &  """"
                  .FindFirst sWhere
                  If .NoMatch Then
                     nCount2 = nCount2 + 1
                     'add record
                     .AddNew
                     .Fields(psTextField2) = sValue
                     .Update
                     .Bookmark = .LastModified
                  End If
                  nPk2 = .Fields(psPk2)

                  'add x-reference record
                  sSQL =  "INSERT INTO [" & psTableX &  "] (" _
                     &  "[" & psPk1 &  "], [" & psPk2 &  "])" _
                     &  " SELECT " & nPk1 &  ", " & nPk2
                  'call RunTheSQL
                  If RunTheSQL(db,sSQL) > 0 Then
                     nCountX = nCountX + 1
                  Else
                     sMsg =  "Error executing SQL statement" _
                        & vbCrLf & vbCrLf &  "OK to continue " _
                        & vbCrLf &  "Cancel to stop "
                     If MsgBox(sMsg,vbOKCancel, "Error") = vbCancel Then
                           GoTo Proc_Exit
                     End If
                  End If
               End If  'psTextField2 has value
            Next i  'asItems
         End If  'psTextField1 has value
         rs1.MoveNext
      Loop  'rs1
   End With  'rs2

   db.TableDefs.Refresh

   sMsg = nCount1 &  " records separated from " & psTable1 _
      & vbCrLf & nCount2 &  " records created in " & psTable2 _
      & vbCrLf & nCountX &  " records created in " & psTableX _

   MsgBox sMsg,, "Done"

Proc_Exit:
   On Error Resume Next
   If Not rs2 Is Nothing Then
      rs2.Close
      Set rs2 = Nothing
   End If
   If Not rs1 Is Nothing Then
      rs1.Close
      Set rs1 = Nothing
   End If
   Set db = Nothing
   Exit Sub

Proc_Err:
   MsgBox Err.Description _
       ,, "ERROR " & Err.Number _
        &  "   MakeXRefRecords"
   Resume Proc_Exit
   Resume

End Sub

Keyword and comments in code were colored with this free Color Code add-in
